Conversion from Forced Hot Air system to Four zone Radiant
HomeDual Mod-Con BoilersNew Luxury HomeLuxury Home RenovationCommercial RadiantBasic RadiantSystem ConversionSmart HomeThe "Ultimate Disaster""Fuzzy Business"Natural Gas UpgradeRental Renovation"Bites the Dust"Odds and EndsAHS NewsContact Us

Conversion from a Forced Hot Air system to under floor staple up radiant heat.

                               -------------  Talk about 3 dimensional piping, Whew!  --------------

[Click on pictures to enlarge]

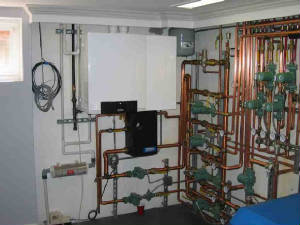

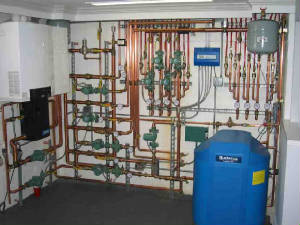

Buderus wall hung boiler with indirect DHW tank

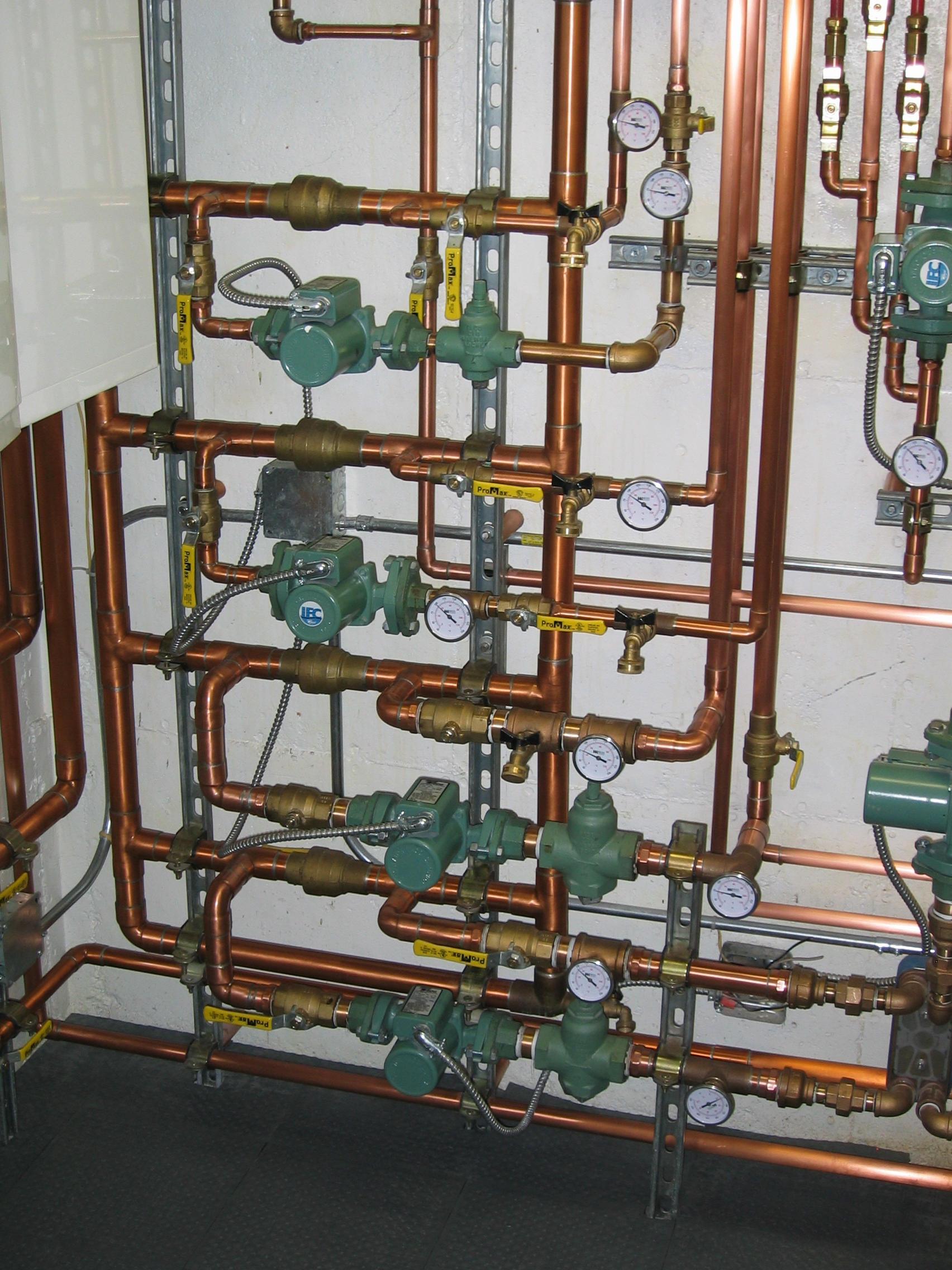

Check out this Primary Loop!

Radiant - Baseboard - Fan Coil - Snow Melt systems

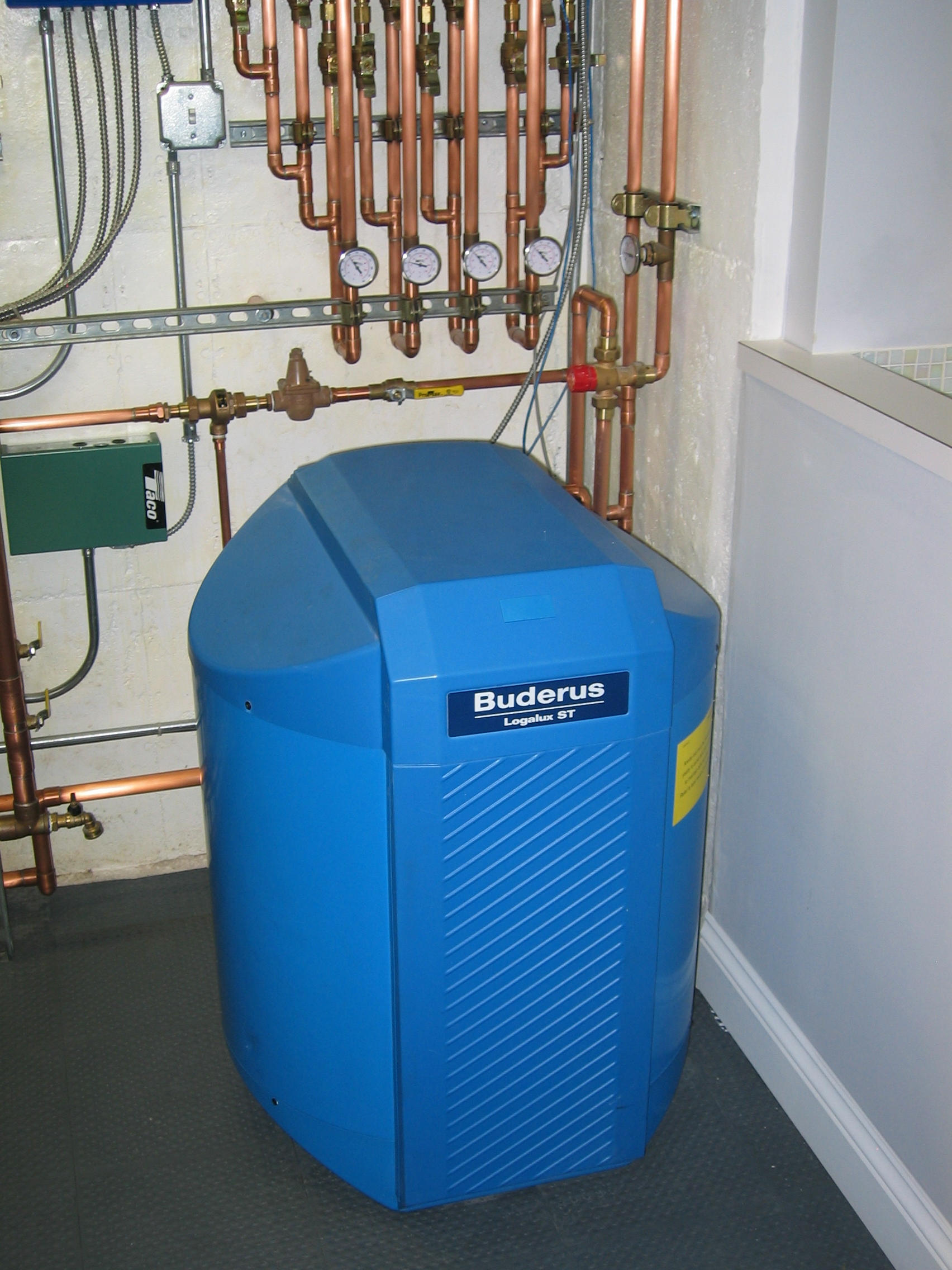

Buderus indirect domestic hot water tank

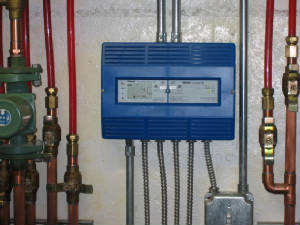

Tekmar outdoor reset with four zone pump manager

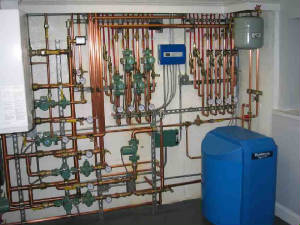

Buderus modulating boiler driven by Tekmar control



This home renovation included a conversion from an Oil-fired forced hot air heating system to a
Gas fired condensating boiler with four zone pumps and an underfloor staple up radiant heating system.


Domestic hot water is provided by an indirect hot water tank along with a baseboard zone in the
garage and a hydro air coil in the A/C system for supplementry heat if needed.


A Glycol heat exchanger, pumps and wiring were installed for a future Snow Melt Station
in the garage which will take care of driveway snow melting.
